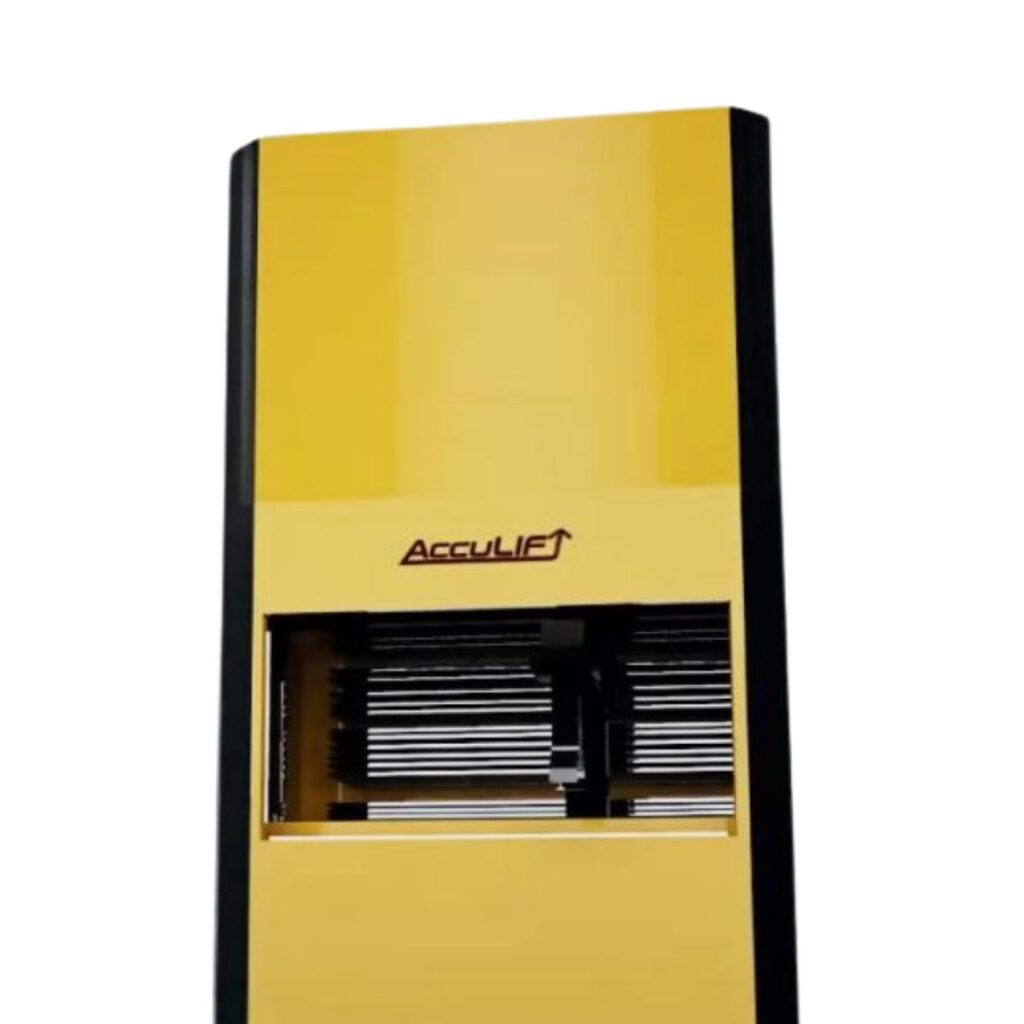

Accu-Assembly – AccuLiFT™
AccuLiFT™ is an automatic reel storage system using the traditional Vertical Lift Module (VLM) design concept to achieve high storage capacity while minimize machine foot print. A person is no longer required to manually feed the reel storage system one at a time or manually load reel pallet one reel at a time. All the users need to do is to stack 30-100 reels onto multiple stacking units and the robotic arm will pick up the reels from the stackers and place them into the storage system.
Description
The AccuLiFT™ storage system is designed with a double pallets in/out buffer for loading and unloading so while the robot is working on one pallet, the extractor will store and retrieve parts for the next pallet.
Maximum storage capacity of 8,300 reels of SMT component reels represents the highest density in component storage system today. Automatic barcode reader identifies each reel before it is put away into the system to maintain accurate inventory. Also included are Barcode label applicator on output side and Flexible software for MES integration. Users can drastically reduce component kitting time and still maintain inventory accuracy.
Key Features
- Fully Automatic
- Very High Storage Density with Very Small Foot Print
- Easy Reel Size and Thickness Re-configuration by user
- Reel output sorting built into the system
- Modular Design for easy transportation
- No Calibration Direct Drive System design(patent pending)
AccuLiFT Intro
Key Industries
- Semiconductor, Solar & Electronics
Additional information
| Markets | Thailand |
|---|---|
| Solutions | Automatic Storage |
| Applications | Semicon Back End, SMT |
