BigRep – 3D Printer – BigRep ONE

The BigRep ONE was created to make industrial 3D printing for large-scale objects as easy as possible. Every detail has received our full expertise and experience — for better quality, higher speed, and increased safety.

Technical Specification

Build volume	x 1005 y 1005 z 1005 mm.
Layer height resolution	0.1-1.4 mm. *
Acceleration	Up to 400 mm./s²
Printer weight	Approx. 460 Kg.
Printing technology	FFF – Fused-Filament-Fabrication (FDM)
	*Depending on selected extruder/nozzle

Key Features

The frame construction.

• The open format ensures that the user has the best possible view for monitoring the quality and progress of the object at all times. All moving parts have been enclosed for user safety and to reduce contamination. Integrated sensors ensure safety, precision, and user friendliness.

The print heads.

• The modular print heads operate independently, allowing for unbeatable flexibility when printing with two materials or with water soluble support material (PVA). They can be easily adjusted and replaced without the need for tools. During the printing process, the active print head moves downward slightly to avoid making contact with the object. The print heads were developed by BigRep’s in-house team and optimized for large-scale printing projects.

The print bed.

• The heated print bed provides optimal adhesion in the printing process right from the onset. Thanks to the integrated automatic inductive sensor, the print bed can be leveled quickly and effortlessly, reducing prep time considerably.

The build volume.

• The new BigRep ONE features a build volume of 1005x1005x1005 mm. (WxDxH). With a capacity of over one cubic meter, the new BigRep ONE provides the largest FFF build volume currently available on the international market.

The spool holder.

• The spool holder was designed to fit all standard spool sizes. It can hold several spools up to 8 Kg. A run-out detection system notifies the user when the spool is about to end.

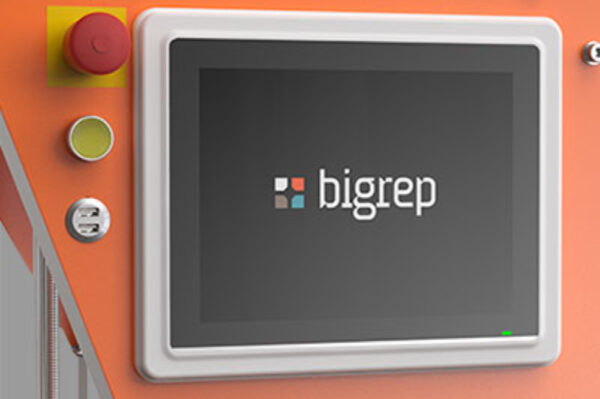

The graphical user interface.

• New intuitive user interface on touch panel PC, enabling lots of new features as remote load and check print progress via webcam, resume print after power failure and many more.
