BMGLABTECH – SPECTROstar Nano
The SPECTROstar Nano is equipped with BMG LABTECH’s ultra-fast UV/vis spectrometer, which allows users to measure full-spectrum absorbance (220 – 1000 nm) in less than 1 second per well.
Description
It is the ideal instrument to read all absorbance assays in a microplate or cuvette – with many common assay protocols predefined and available at the click of the mouse.
Technical Specifications
| Detection Modes | UV/vis absorbance spectra |
| Measurement Modes | Endpoint and kinetic Spectral scanning (absorbance) Well scanning |
| Microplate Formats | 6 to 1536-well plates, user-definable LVis Plate with 16 low-volume microspots (2 μL) |
| Microplate Carrier | Robot compatible |
| Light Sources | High energy xenon flash lamp |
| Detectors | CCD Spectrometer |
| Wavelength Selection | UV/vis absorbance spectrometer Full spectra or 8 distinct wavelengths in < 1 sec/well |
| Spectral Range | 220 – 1000 nm; wavelength precision: ≤ 0.5 nm |
| Sensitivity | Selectable spectral resolution: 1, 2, 5, and 10 nm OD range: 0 to 4 OD; photometric resolution: 0.001 OD Accuracy: < 1% at 2 OD Precision: < 0.5% at 1 OD and < 0.8% at 2 OD Linearity: ≤ 0.8% at 2.0 OD |
| Read Times | Full spectrum from 220 to 1000 nm in less than 1 sec/well |
| Shaking | Linear, orbital, and double-orbital with user-definable time and speed |
| Incubation | #ERROR! |
| Software | Multi-user Reader Control and MARS Data Analysis Software included FDA 21 CFR Part 11 compliant |
| Dimensions | Width: 36 cm, depth: 50 cm, height: 16 cm; weight: 10 kg |
Key Features
- High-speed absorbance measurements
- Measurements in up to 1536-well plates
- Integrated cuvette port
- LVis Plate compatibility
- Incubation up to 45 °C
- Multiple shaking options
- Well scanning with up to 900 data points per well
- Easily integrated into automated systems

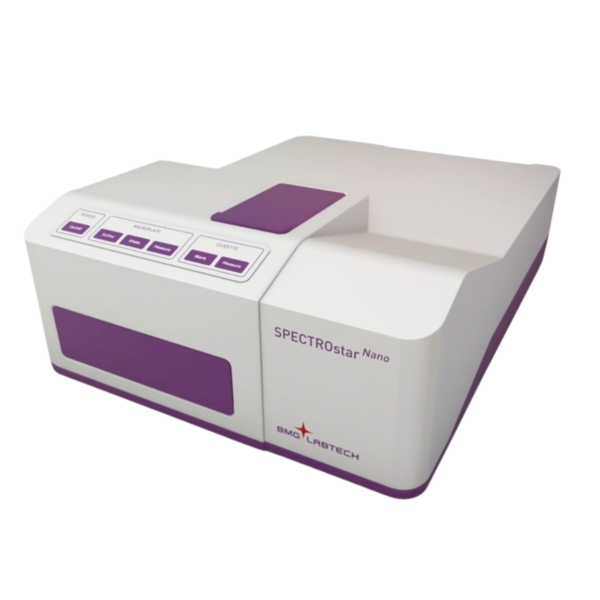

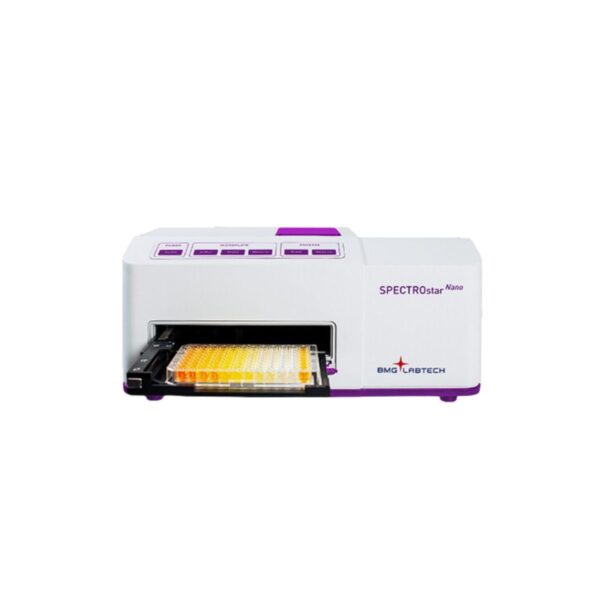

SPECTROstar Nano Absorbance Reader
BMG LABTECH’s absorbance microplate reader SPECTROstar Nano has the flexibility to perform assays quickly and easily in both microplates. This spectrometer-based absorbance microplate reader captures a full UV/visible spectrum in less than 1 sec per well. Its speed make the SPECTROstar Nano the leading microplate reader for absorbance measurements.
Key Industries
- Biopharmaceutical and Biotechnology
- Cosmetics & Personal Care
- Education & Academics
- Food & Beverage
- Pharmaceutical
Additional information
| Applications | Life sciences |
|---|---|
| Markets | Thailand |
| Solutions | Genomics, Lab informatics |
