HAIMER – Presetting Technology – VIO Series

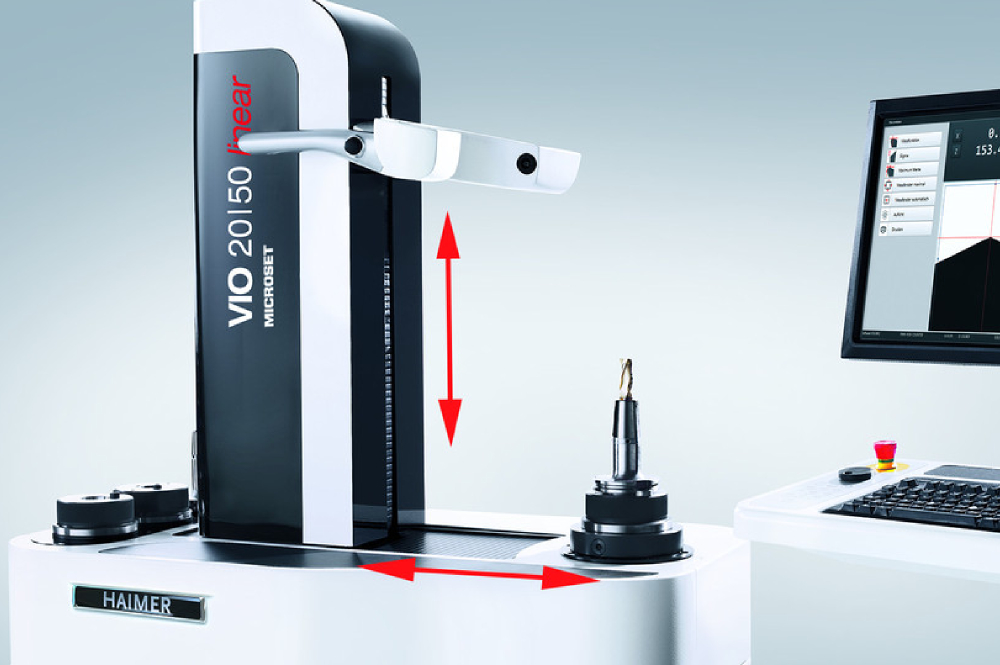

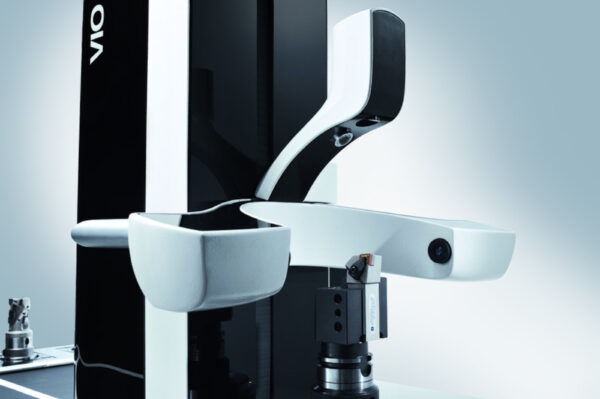

The FEM-optimised, thermally stable cast iron construction of the VIO linear series ensures accurate measuring results and equipment longevity. In addition, highly dynamic, wear-free linear drives ensure accurate long-term quality. The parallel drive and guidance system ensures optimal distribution of forces and guarantees measurement repeatability of ±2 μm.
Moreover, optimise process reliability in your production with fully automatic measurement processes. The holistic device concept allows for integration in all production processes, including existing ones.
Available Models
Technical Specifications
| Maximum tool diameter | 400 / 700 / 1000 mm. |
| Maximum snap gauge tool diameter | 100 mm. |
|---|---|
| Maximum tool weight | 160 Kg. |
| Weight | 410-505 Kg. |
Technical Specifications
| Maximum tool diameter | 420 / 700 / 1000 mm. |
| Maximum snap gauge tool diameter | 100 mm. |
| Maximum tool weight | 160 Kg. |
| Weight | 410-505 Kg. |
Technical Specifications
| Maximum tool diameter | 420 / 700 / 1000 mm. |
| Maximum snap gauge tool diameter | 100 mm. |
Key Features
- Low distortion even under the maximum permissible load thanks to its high rigidity.
- FEM-optimised and thermally stable cast iron construction.
- Maximum tool weight 160 Kg.
- Fast, silent and high accurate cutting edge approach by unique linear drive.
Key Industries
- Machinery & Manufacturing
