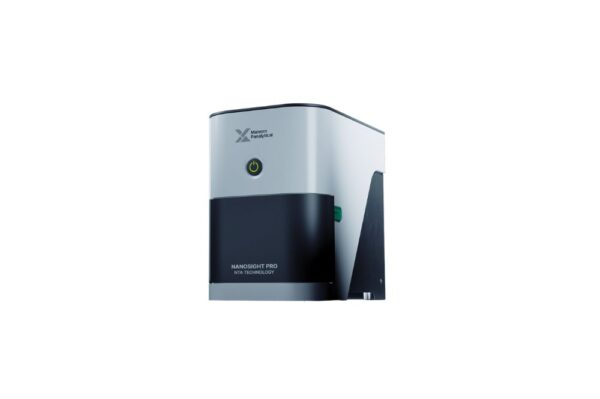

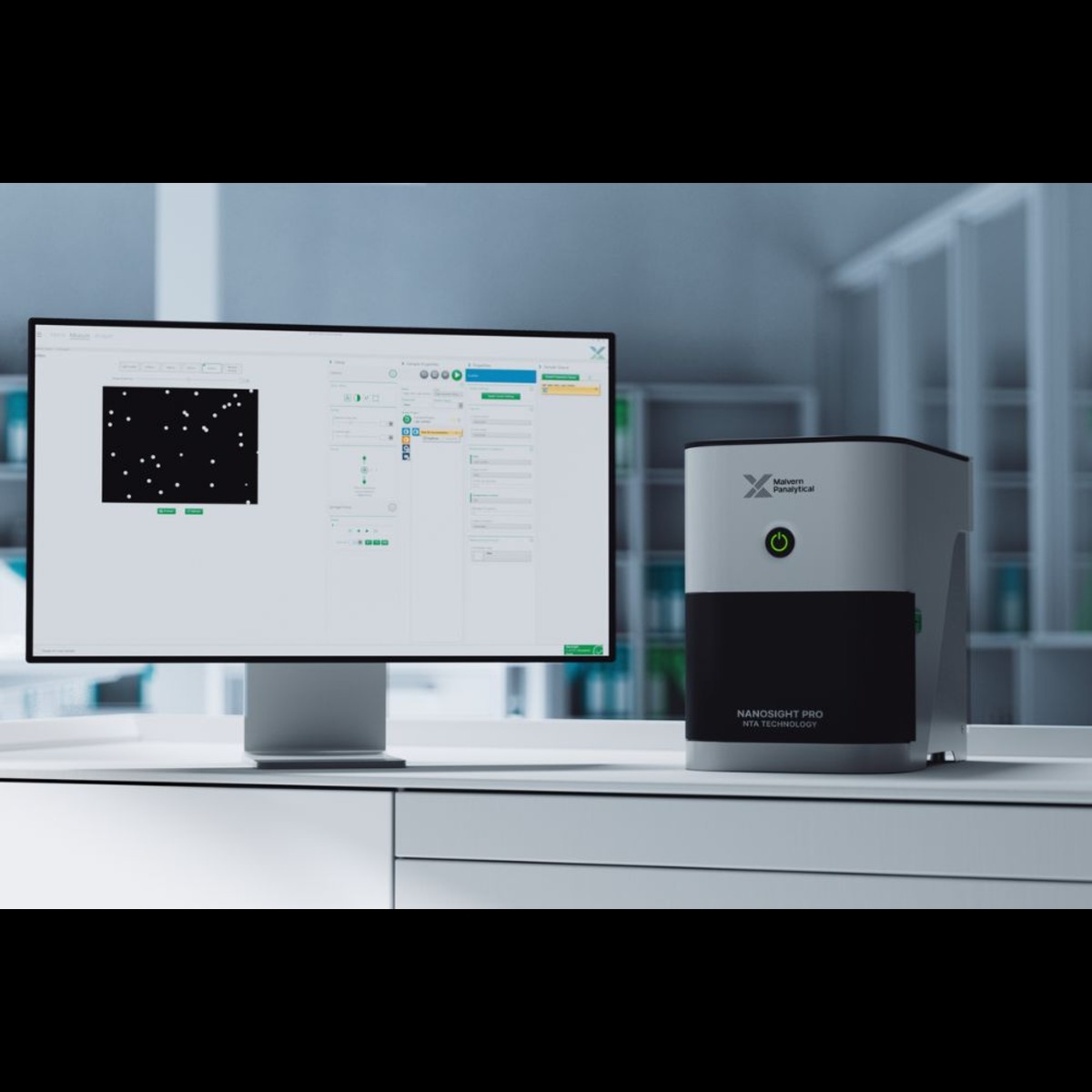

Malvern Panalytical – Particle Characterization – NanoSight Pro
Characterizing Nano- and Biomaterials has never been so quick, easy, and accurate
With the introduction of the NanoSight Pro, Malvern Panalytical provides the best in class, simple and rapid NTA solution for nano- and biomaterials characterization. The combination of advanced engineering and a blend of smart features assures NTA measurements are efficient, quick, and accessible to all users. Powered by machine learning, NS Xplorer software enables automated measurements, removes subjectivity, and provides the highest quality size and concentration data for both, the light scatter and fluorescence analysis. Interchangeable lasers allow application flexibility, whilst Smart Manager connection assures robustness without a worry for quality issues or downtime.
Technical Specifications
| General | |
| Technology | Nanoparticle Tracking Analysis |
| Size range (diameter)1 | 10 nm – 1000 nm |
| Particle concentration2 | 106 to 109 particles / mL |
| Minimum sample volume | 250 μL |
| Advanced Concentration Algorithm | Concentration Upgrade |
| System | |
| Product Compliance | Product Laser Class 1 (BS EN 60825-1:2014) EMC Directive (EN IEC61326-1:2021) Low Voltage Directive (IEC 61010-1:2010 IEC 61010-1:2010/AMD 1:2016) |
| Camera | High sensitivity sCMOS (USB-3) |
| Laser information | Beam wavelength (maximum power output): 405 nm, max power <70 mW 488 nm, max power <55 mW (blue) 532 nm, max power <60 mW (green) 642 nm, max power <50 mW (red) |
| Temperature control range | 5 °C below ambient up to 70 °C |
| Temperature readout | Automatic |
| Syringe pump | Continuous sample flow with 1 mL syringes |
| Dimensions (W, D, H) | 34 x 35 x 25 cm |
| Weight of instrument | 11 kg |
| Weight of laser module | 1.6 kg |
| Power requirements | AC 110 – 240 V, 50-60 Hz, 4.0A |
| Ambient operating conditions | Up to 80% rH at 31 °C then decreasing linearly to 50% at 40 °C |
Key Features
NanoSight Pro
- Quick install & analysis
NanoSight Pro can be used by every user in every lab. Smart installation allows you to get up and running quickly. With minimum setup, easy operation and intuitive NS Xplorer software you can measure your samples in minutes.
- Intelligent & automated
Powered by machine learning and intelligent features, NanoSight Pro automates processing and eliminates human error, delivering superior particle identification and precise particle tracking for the highest quality and reproducible data.
- Highest resolution
The NanoSight Pro measures nanoscale particles in the range of 10 nm – 1000 nm including low scattering and biological particles. Particle–by–particle analysis assures high resolution size and concentration data with visual confirmation.
- Power of fluorescence
In addition to light scatter, fluorescence signals can be detected from fluorescently tagged biologics or synthetic particles providing even greater insight into your sample. Interchangeable laser modules with the choice of four excitation wavelengths can be used along with the matching long pass filters for the optimum setup supported by analysis in flow for better sampling and tracking of even photobleaching samples.
The greater fluorescence sensitivity enables subpopulation identification including surface markers, internal cargo detection or depreciation of contaminants sensitivity.
Nanoparticle Tracking Analysis – Nanosight Pro
The quickest, easiest and most detailed NTA solution to characterization bio and nano materials.
Key Industries
- Aerospace
- Biopharmaceutical and Biotechnology
- Chemical
- Cosmetics & Personal Care
- Electronics
- Environmental
- Food & Beverage
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Optical
- Paper & Wood
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders & Pigments / Coating
- Semiconductor, Solar & Electronics
- Textile
