Minebea Intec – Load Cell Series
We offer a wide range of solutions for weighing vessels and tanks, both for storage and batching applications. This includes, at the one end of the spectrum, cost-effective solutions for inventory control where a weighing system accuracy of a few per cent is fully sufficient.
On the other end, our customers find high-accuracy solutions that allow them to very precisely dose a small component into a large batching vessel. This can even be done while a mixer is turning or the vessel is being heated. The core element of every process vessel scale is the load cell.
Minebea Intec has decades of experience in designing and producing a wide range of load cells for different applications.
All of our load cells feature:
- German quality ensuring superior accuracy and reliability
- Robustness, allowing overload capacities of up to 500 %
- Optimum IP protection guaranteeing a long lifetime even under harsh conditions. Minebea Intec load cells can even be immersed in water with a depth of 1.5 meters for 10,000 hours
- Wide operating temperature range of up to -30 ˚C to +95 ˚C making them suitable for virtually all weighing applications and production conditions. Our load cell PR 6212 even features an operating temperature range of up to +180 ˚C
Available Models
Load Cell PR 6212
- Corrosion resistance and precision for demanding applications
- Compact design ensuring a low system height
- High-temperature version available for up to 180 ˚C
- Load cell capacity range from 500 kg to 10 t
- Corresponding mounting kit: PR 6012
- Accuracy class: 0.04 % · Maximum corrosion resistance
- High-temperature version available for up to 180 °C
- Easy and failure-free installation using the mounting kit PR 6012
Mounting kit PR 6012 benefits
- Integrated jack-up and dummy function
- Low installation height

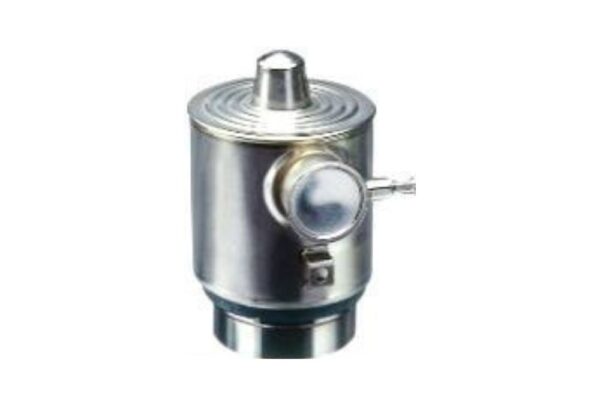

Precision Compression Load Cell PR 6201
The PR 6201 range of load cells is specially designed for weighing silos, tanks and process vessels Proven rocker pin principle for best compensation of expansion and shear forces.
- Corresponding mounting kits (certified according to EN 1090)
- Load cell capacity range from 500 kg to 520 t
- Accuracy class: 0.25 % – 0.008 %
- 500 kg… 50 t Type LA | L | D1 | C3
- Easy to install
- Well-proven rockerpin design
- Easy corner adjustment by matched load cell output
- Full stainless-steel housing
- Wide temperature range · High overload capacity
- Resistant against vibrations
- Hermetically sealed, IP68 (depth of 1.5 m for 10,000 hrs.), IP69K · 4 to 20 mA output signal as option (LA version)
- Optimum overvoltage protection
- Ex-version available (PR 6201/..E) · W&M aprroval (OIML R60, NTEP)
Compression Load Cell Inteco PR6203
The load cell Inteco® represents a consistent enhancement to the well-known PR 6201. With an output signal of 2 mV/V, additional load levels of up to 75 t, higher accuracy classes (C6) and high-quality stainless steel, it has a wider range of potential applications. Accuracy classes D1 (0.04%), C3 (0.015%) and C6 (0.008%). As a digital weighing solution with the converter Connexx®, the load cell Inteco offers fast signalling times and optimal transparency in dosing and weighing processes. The Minebea Intec mounting kits FLEXLOCK minimise the effect of movements on the weighing result at the same time.
- 500 kg… 75 t Type LA | L | D1 | C3
- Easy to install
- Well-proven rockerpin design
- Easy corner adjustment by matched load cell output
- Full stainless-steel housing
- Wide temperature range
- High overload capacity
- Resistant against vibrations
- Hermetically sealed, IP68 (depth of 1.5 m for 10,000 hrs.), IP69K
- 4 to 20 mA output signal as option (LA version)
- Optimum overvoltage protection
- Ex-version available (PR 6201/..E)
- W&M aprroval (OIML R60, NTEP)

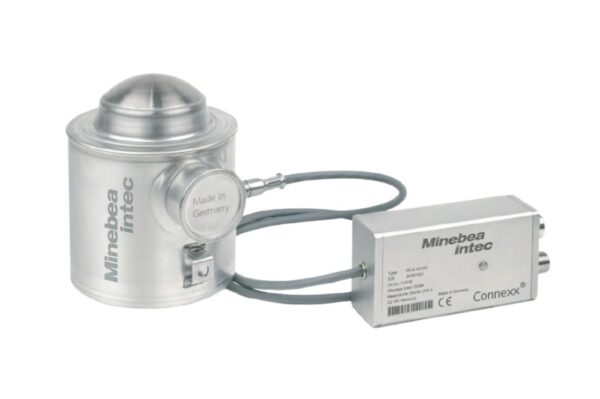

Product EnhancementsDigital Solution for Inteco
Fitted with the converter Connexx®, the load cell Inteco® offers a whole host of possibilities:
- The digital version guarantees fast signalling times for reliable dosing processes
- Thanks to the use of field bus communication, the cable junction box is no longer needed
- The standard interface CANopen ensures straightforward installation and calibration
- CANopen allows for extra-long communication paths of up to 200 m
- Weight values can also be generated individually – per load cell – meaning that defective load cells can be identified more easily
Compression Load Cell PR 6202
The PR6202 range of load cells is specially designed to meet the high demands of the food, pharmaceutical and chemical industries.
- 1 t… 25 t, Typ C1 | C3 | C4
- Proven rocker-pin principle
- Full stainless-steel construction
- High overload capacity
- Ex-version available (PR 6202/..E)
- Easy corner adjustment by matched load cell output
- Full stainless-steel housing
- Wide temperature range
- High overload capacity
- Resistant against vibrations
- Hermetically sealed, IP68 (depth of 1.5 m for 10,000 hrs.), IP69K (equiv. NEMA 6)
- 4 to 20 mA output signal as option (LA version)
- Optimum overvoltage protection
- Ex-version available (PR 6202/..E)
- W&M approval (OIML R60, NTEP)
- Meets EHEDG requirements.
- Registered Design Nos. EU 000 210 349-0001/-0002, JP 2005 – 478, US 22/222, 249
PanCake Level Sensor PR 6251
The PR 6251 range of load cells is specially designed for easy weighing of silos and horizontal tanks. The unique design principle ensures a very compact construction.
- 500 kg… 16 t, L | LA | LE | LAC0
- Ultra-flat load cell for low precision tank weighing as alternative to level sensors
- Load cell capacity range from 500 kg to 16 t
- Accuracy class: L (0.5 %)
- Corresponding mounting kit: PR 6051
- Easy and reliable mounting
- Stainless steel construction
- Optionally equipped with 4…20 mA output (LA/LAC)
- Extremely low installation height makes retrofitting easy.
- Very large service temperature range
- Virtually no influence on weighing results from transversal forces
- 100% maintenance-free
- “Made in Germany” quality
Tension Load Cell S-Type PR 6246
The PR 6246 range of load cells is specially designed for high-precision weighing of process vessels and for high-precision dosing.
- 100 kg… 3 t, Type D1 | C3 | C6
- Ultra-high precision load cell for batching applications
- Load cell capacity range from 100 kg to 3 t
- Accuracy class: 0.04 % – 0.008 %
- Corresponding mounting kit: PR 6046
- Easy to install
- Easy corner adjustment by matched loadcell outputs
- Full stainless steel housing
- Wide temperature range
- High overload capacity
- Resistant against vibrations
- Hermetically sealed, IP68 (depth of 1.5 m for 10,000 hrs.), IP69K
- Ex-version available
- W&M approval (OIML R60, NTEP)
Bending Beam Weigh Cell MP 77
Stainless steel bending beam Weigh cell MP77
- 10 kg … 500 kg
- Load cell capacity range from 10 kg to 500 kg.
- Accuracy class: 0.02 %
- Corresponding mounting kit: MP 97
- Full stainless-steel construction
- Compatible with other sources
- Hermetically welded seal (IP68)
- Approved according to OIML R60 – Ex version available
Application:
- Platform scales
- Tank and hopper scales
Pendeo® Truck – Digital Weighbridge Load Cell
The Pendeo® Truck is a digital load cell with DAT (Digital Assistance Technology).
- 25 t and 50 t, Type C3 and C6
- Ideally suited to use in weighbridges
- Extremely robust design in hermetically sealed stainless steel housing.
- High overload range (up to 150 %)
- Easy installation
- Insensitive RS485 output signal
- Best application for weighbridges
- Default, maintenance free and compact construction
- Very robust construction into hermetically sealed stainless steel housing.
- DMS technology for a high protection against lightning
- Additional protection through diagnostic function
