N-Biotek – Platform Shakers – Platform Shakers

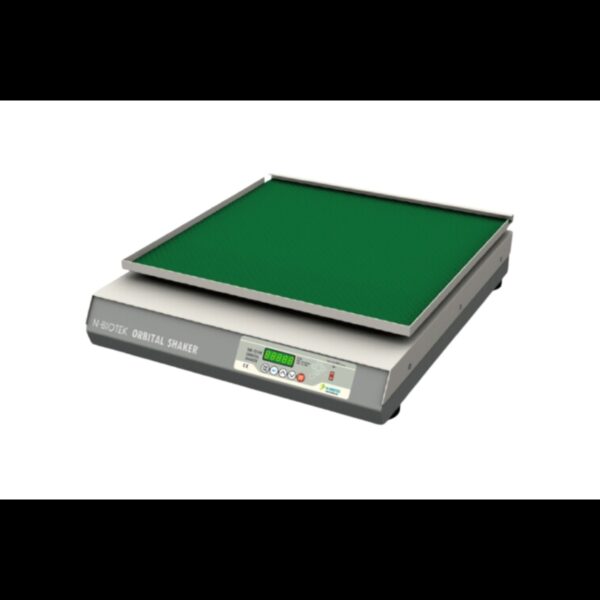

N-BIOTEK offers benchtop shakers which are available in two sizes with various options such as orbital, reciprocating, combination shaking motions. Magnetic induction drive & brushless DC motor provide ideal shaking function for cell culture, sample mixtures, suspension, microbiology, chemistry. Enjoy its stable shaking and noiseless operation along with small footprint.
Technical Specifications
| NB-101S | NB-101M | NB-101MT | NB-101MC | |
|---|---|---|---|---|
| Motion | Orbital | Orbital | Orbital or reciprocal | Orbital & reciprocal |
| Speed Range | 30 to 300 rpm, + 1 accuracy, 1 rpm increment | Speed range | 30 to 300 rpm, + 1 accuracy, 1 rpm increment | Speed range |
| Timer | Continuous or up to 99 hours 59 min | Timer | Continuous or up to 99 hours 59 min | Timer |
| Control | Microprocessor digital controller | Control | Microprocessor digital controller | Control |
| Operating Panel and Display | Touch button with LED display | Operating panel & display | Touch button with LED display | Operating panel & display |
| Motor and Drive System | Plate Type BL/DC Motor & Beltless Direct Drive | Motor & Drive system | Plate Type BL/DC Motor & Beltless Direct Drive | Motor & Drive system |
| Orbit Diameter | 22 mm | Orbit diameter | 22 mm | Orbit diameter |
| Platform Size | 300×330 mm | 460×455 mm | Platform size | 300×330 mm |
| Holder/Rack | Silicone rubber pad included | Spring rack included | Holder/Rack | Silicone rubber pad included |
Available Models
Technical Specifications
| Motion | Orbital | |
| Speed | range | 30 to 300 rpm (up to 400rpm:high speed type) |
| accuracy | ±1rpm | |
| increment | 1 rom | |
| Time | range | Continuous or up to 47h 59min |
| accuracy | 0.01 | |
| increment | 1 minute | |
| Control | Microprocessor Digital | |
| Motion control | ||
| Operating panel | Touch Button | |
| Display | LED Display | |
| Motor | Plate TvDe BL/DC Motor | |
| Drive system | Beltless Direct Drive | |
| Orbit Diameter | 22mm | |
| Platform size | 460(W)x455(D\mm with Rubber Pad | |
| Dimmensions | 465(W)x540(D)x125(H)mm | |
| Holder/Rack | Rubber Pad | |
| Weight | 29kg | |
| Power | 110/220V 50/60H7 20W |
Medium Shaker
Medium Shakers are used for the experiment of the pathology clinics, cells/microbes cultivation and extractions, planet tissue section mounting.
Technical Specifications
| Motion | Orbital or Reciprocating | |
| Speed | range | 30 to 300 rpm |
| accuracy | ±1rpm | |
| increment | 1 rpm | |
| Time | range | Continuous or up to 47h 59min |
| accuracy | ±1% | |
| increment | Microprocessor Digital | |
| Control | Lever Operate | |
| Motion control | Touch Button | |
| Operating panel | LED Display | |
| Display | Plate Tvpe BL/DC Motor | |
| Motor | Beltless Direct Drive | |
| Drive system | 22mm | |
| Orbit Diameter | 160(W\¥455(D)mm | |
| Platform size | Microprocessor Digital with Rubber Pad | |
| Dimmensions | 465(W)x540(D)x145(H)mm | |
| Holder/Rack | Rubber Pad | |
| Weight | 35kg | |
| Power | 110/220V. 50/60Hz. 30W |

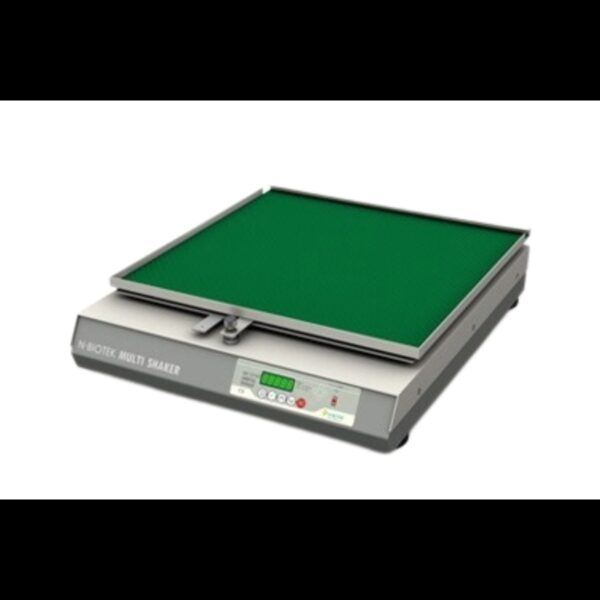

Multi Shaker
Multi-shaker provides dual function choosing either orbital motion or reciprocating motion which is used in Mixing reagent, physical clinic, shaking culture, cell culture.
Technical Specifications
| Motion | Orbital & Reciprocating | |
| Speed | range | 30 to 300 rpm |
| accuracy | ±1rpm | |
| increment | 1 rpm | |
| Time | range | Continuous or up to 47h 59min |
| accuracy | ±1% | |
| increment | Microprocessor Digital | |
| Control | Microprocessor Digital | |
| Motion control | Lever Operate | |
| Operating panel | Touch Button | |
| Display | LED Display | |
| Motor | Plate Tvoe BL/DC Motor | |
| Drive system | Beltless Direct Drive | |
| Orbit Diameter | 22mm | |
| Platform size | 220(W)x455(D)mmx2 | |
| Dimmensions | 465(W)×540(D)x195(H)mm | |
| Holder/Rack | Soring Rack | |
| Weight | 38kg | |
| Power | 110/220V. 50/60Hz. 30W |
Combination Shaker
Using two separate platforms, both orbital and reciprocating shaking motion are available in one shaker. Also, both platforms can be combined like one platform and run in orbital motion. Using two separate platforms, both orbital and reciprocating shaking motion are available in one shaker. Also, both platforms can be combined like one platform and run in orbital motion.
Key Features
- Beltless Magnetic Induction Drive
- CO2 & Humidity Resistant
- Switchable shaking motion (NB101MT, NB101MC)
- Easy & Simple Platform Installation
N-BIOTEK Shakers
Magnetic Induction BLDC Motor Shakers Powerful and Stable Shaking! 30 to 300RPM, Timer, Low Noise, Easy Platform Install!
Key Industries
- Biopharmaceutical and Biotechnology
Brand
N-BIOTEK is the only company offering ‘Stem Cell Total Solution,’ a turn-key solution for bio cleanrooms, stem cell culture technology consulting, and life science equipment. It has established stem cell processing facilities in various countries and developed stem cell items such as stem cell isolation kits, cosmetics, and the International Society for Stem Cell Application. Since 1982, N-BIOTEK has developed various kinds of life science equipment. With its differentiated quality and technology in the life science domain, it has more than 100 distributors worldwide.
N-BIOTEK provide Stem Cell Total Solution including Bio clean room construction, Stem Cell equipment installation, Technology transfer, Consumables, and Stem Cell Cosmetics.
