Nutek – NTA In-line Workstation – NTA Series
The NTA In-line Workstation is used to link between SMD machines or board handling units. It also allows manual assembly work to be carried out.
Technical Specifications
| Conveyor Concept | Belt | |
| Conveyor Speed | 0.5 – 14 m/min. or specify | |
|---|---|---|
| Conveyor Length | 1000 mm or specify | |
| Power Source | 100, 230VAC 1Ph | |
| Power Consumption | 200VA max. | |
| For further details, please refer to enclosed brochure. | ||
Available Models

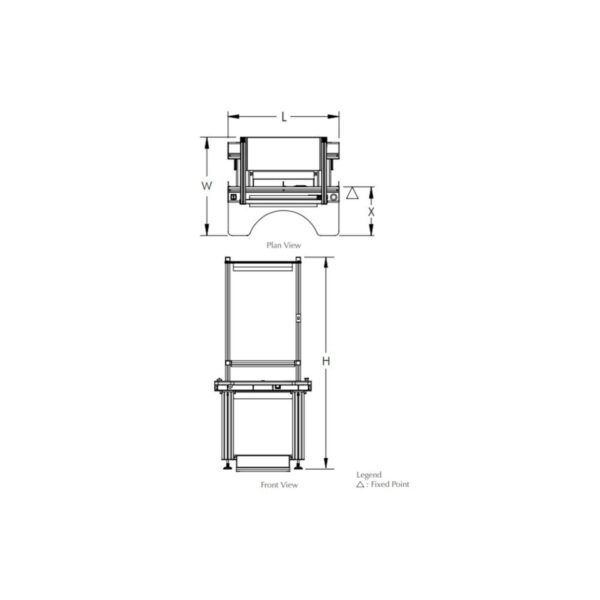

| Model No. | Size | Machine Dimension (mm) L x W x H | Fixed Point to Front Dimension (X) | Weight (Approximately) | |
|---|---|---|---|---|---|
| NTA0530WSM | M | 1000 x 1045 x 2190 mm | 461 mm | 130 kg | |
| NTA0530WSXL | XL | 1000 x 1245 x 2190 mm | 461 mm | 150 kg | |
| For further details, please refer to enclosed brochure. | |||||
Key Features
- 4.3” touchscreen panel
- Modular design
- Stability enhanced by ‘robust design’
- Laser carved stainless steel side guides for superior quality and durability
- PCB inspection mode provided
- Servo motor controlled width adjustment
- Different lengths available upon request
- Multi-zone concept available upon request
- Equipped with lighting features, single layer part tray and foot rest
- Equipped with ESD scallop table and ESD bracelet connection
- Variable speed control
- Patented (SG Patent No.: 91261)
- Programmable product setting
- Industry 4.0 ready
- OPC UA ready
- CANOpen communication ready
Key Industries
- Semiconductor, Solar & Electronics
