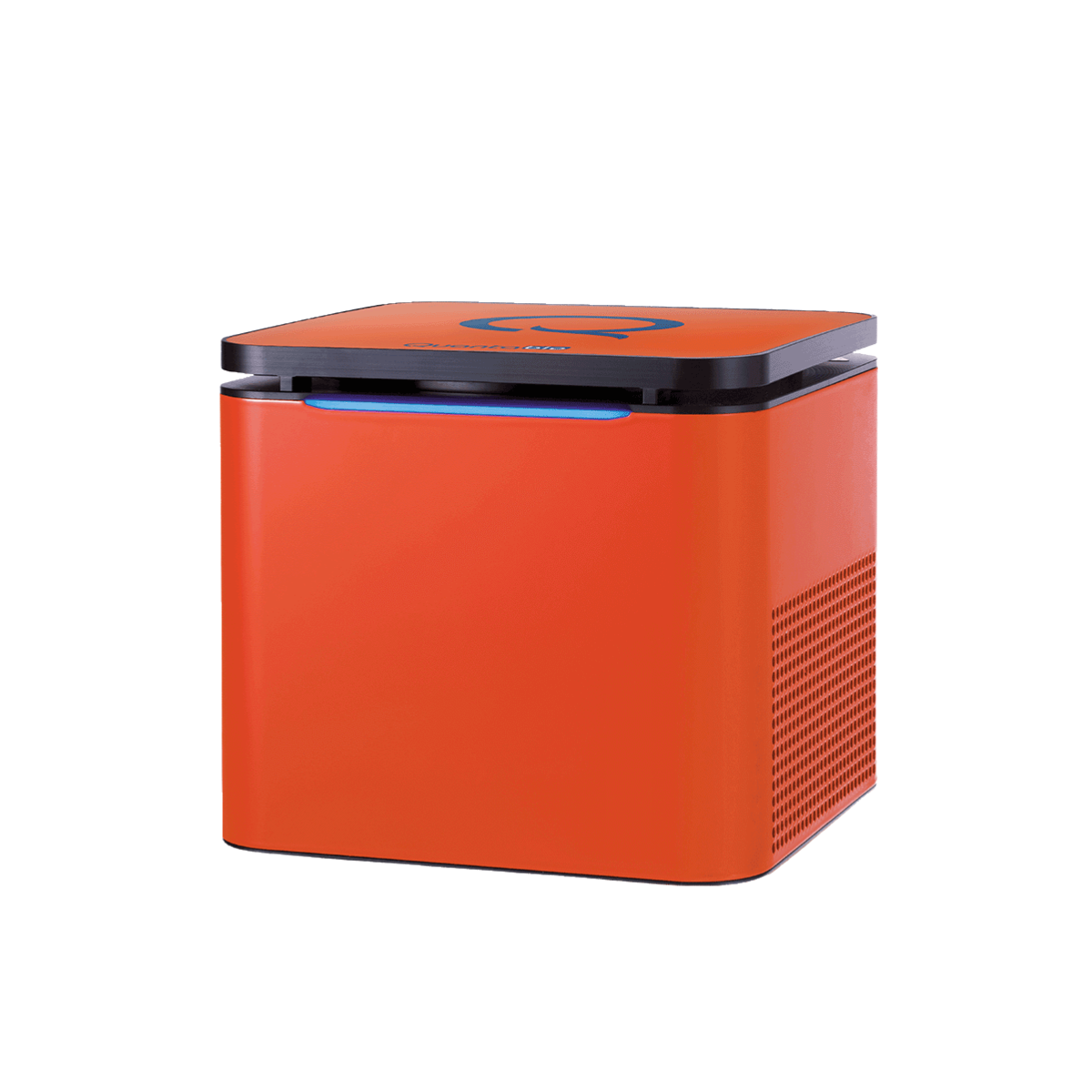

Q uses a patented magnetic induction technology to rapidly heat samples coupled with fan forced air for cooling to acquire data in only 25 minutes. Available as a 4 channel model, the robust optical system acquires all channels simultaneously and allows for running the fastest multiplexed assays.

Q is exceptionally portable and versatile, without the need for calibration. It scales efficiently, handling up to 48 samples per run, and multiple units can connect wirelessly to a single computer via Bluetooth for processing up to 480 samples simultaneously.

Q’s distinctive spinning aluminum rotor ensures precise temperature control (± 0.05°C), outperforming traditional block-based thermal cyclers with multiple peltier heating blocks that may cause sample variations. This innovation enhances reproducibility and repeatability and enables the detection of 2-fold gene expression differences and precise identification of class IV SNP’s with 0.1°C melt temperature resolution.

Technical Specifications

PhysicalHeight5.1 in
Width5.9 in
Length5.9 in
Weight4.5 lbs
Thermal PerformanceTemperature Accuracy±0.25°C
Temperature Uniformity±0.05°C
Ramp RatesHeating 4°C/s
Cooling 3°C/sCooling 3°C/s
Temperature Input Range40 – 99°C
Reaction TubesSamples per Instrument48
Reaction Volume Range5 – 30µL

Additional Product Information

ProductKit SizeOrder Code
Q – qPCR InstrumentQ 2-channel qPCR InstrumentOrder (95900-2C)
Q 4-channel qPCR InstrumentOrder (95900-4C)
HRM License for Q qPCR Instrument1 HRM LicenseOrder (95915-20)
Q Extended Warranty SILVERQ Extended Warranty SILVEROrder (95900-WSIL)
Q Extended Warranty GOLDQ Extended Warranty GOLDOrder (95900-WGOL)
Q Tubes & Caps (20 racks/box)Q Tubes & Caps (20 racks/box)Order (95910-20)

Key Features

  • Ultra-Fast Data Acquisition

35 cycles in 25 minutes

  • Unrivaled Performance

Detect 2-fold expression level differences

  • Portable & Compact

4.5 lbs – transport without ever calibrating

  • Scalable & Wireless

Connect up to 10 instruments (48 samples/instrument)

  • Magnetic Induction Technology

Eliminate variability vs block-based cyclers

Q is intended for molecular biology applications. This product is not intended for the diagnosis, prevention or treatment of a disease.
