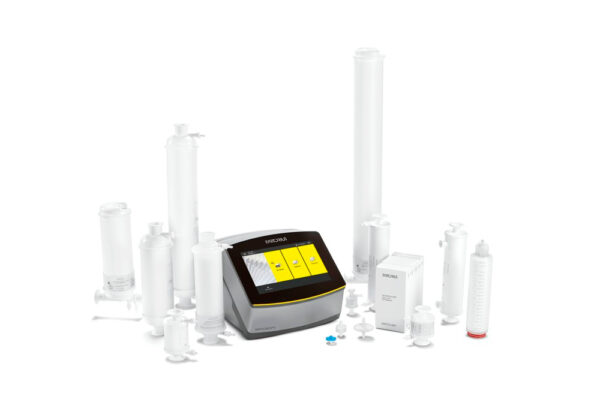

  • SARTORIUS – Sartocheck® 5 Plus Filter Tester


  • SARTORIUS – Sartocheck® 5 Plus Filter Tester – New Software Release Q2 2022 – Version 2.1.1 – Brochure


The Sartocheck® 5 Plus perfectly meets today’s key industry requirements for filter integrity testing in demanding GMP environments. By combining a unique approach to Quality Risk Management, with optimal data integrity, intuitive usability and minimized risk factors for Health, Safety and Environment (HSE), it sets a new standard for filter integrity testing devices.

The regulatory focus on QRM (cf. ICHQ9 and the new Annex 1 written by EMA in cooperation with the US-FDA, WHO and PICs) also applies to filter integrity testing, as a fundamental element of sterility assurance.

The Sartocheck® 5 Plus Filter Tester uses program specific parameters allowing the automatic identification of testing anomalies in advance or during the test. This avoids time-consuming and costly deviations, potential drug recalls and 483 warning letters.

Key Features

• Large touch screen (12.1”) (± 88° viewing angle)
• High ingress protection IP64
• Automatic Detection of Abnormal Test Conditions from a Pressure Increase
• Self-test at Booting and Before Each Test
• Internal Double-Data Backup
• Electronic Signatures | 4 Eyes Principle

Technical Specifications

Test MethodsDiffusion / Bubble point / Combined diffusion and bubble point / Water intrusion test / Pressure drop | leak test
Power Supply100 – 240 V AC at 50 | 60 Hz
Max power input74 W
Power consumption in standby mode14.8 W
Max inlet pressure8,000 mbar | 116 psi
Overpressure protectionMax inlet pressure + 4,000 mbar
Dimensions (W × D × H)348 × 379 × 286 mm
Weight16.8 kg

SARTORIUS – Sartocheck®5 Plus Filter Tester

The Sartocheck®5 Plus represents the ideal intersection point of today’s most relevant industry requirements for filter integrity testing within demanding GMP environments. A combination of a unique approach to Quality Risk Management (QRM) as well as optimal data integrity, intuitive usability, and minimized risk factors for Health, Safety, and Environment (HSE) set a new standard for filter integrity test devices.

Key Industries

  • Pharmaceutical
  • Food & Beverage

Brand

Sartorius Lab Instruments

The Sartorius Group is a leading international partner of the biopharmaceutical industry and the research sector. We are helping biotech scientists and engineers across the entire globe to develop and manufacture medications from the first idea to production. So more people will have access to better medicine.
