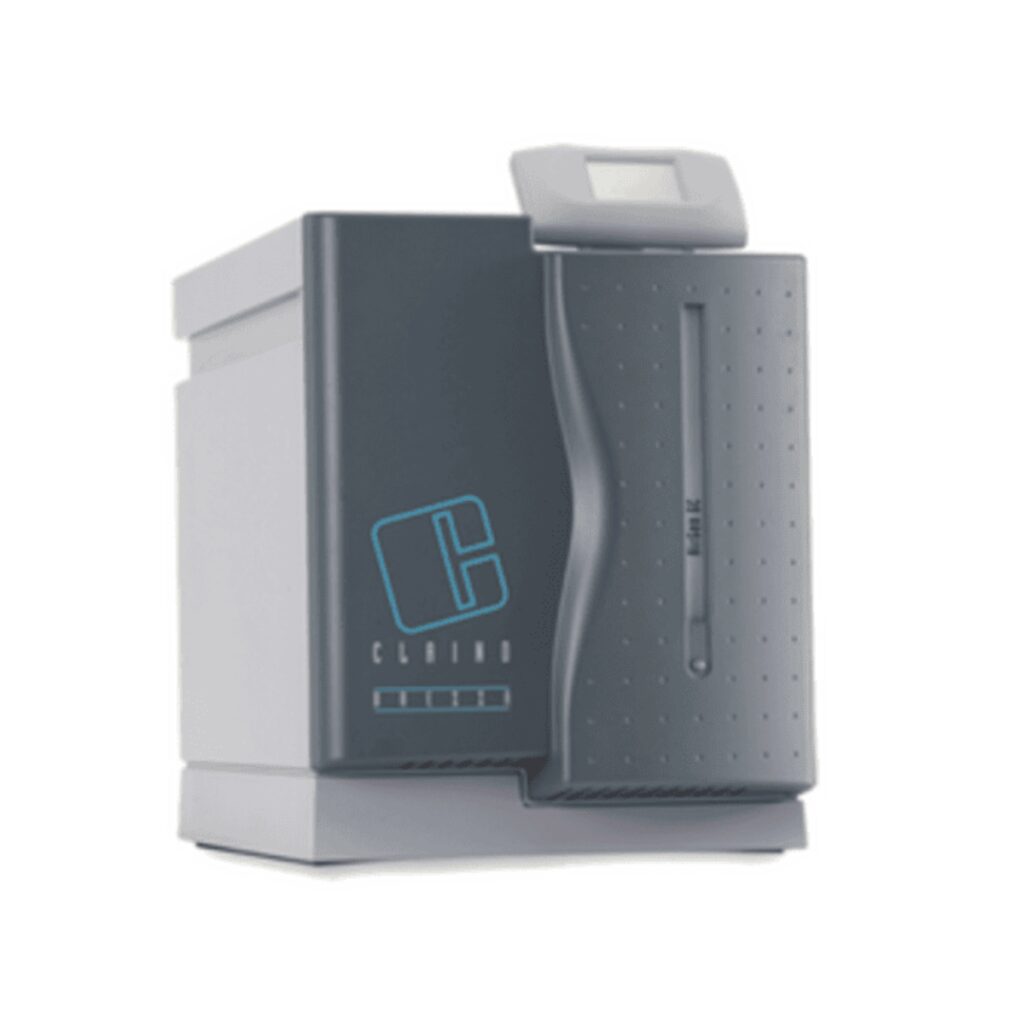

Claind – UHP Air Generator – AirGen GC

UHP Zero Air perfect for NPD, FID, FPD
Parallel connection up to 4 stacked generators with tower configuration
Modular configuration
Equipped with PSA dryer
Able to feed up to 8 FIDs
Platinum Palladium HC system for HCT integral removal < 0,1 ppm for an absolutely stable and disturbante free baseline
Easy integration with Brezza series dedicated air compressor (AirComp)
CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), allows the monitor of the operational status, menus with report alarms and functioning parameters. The CPU include also an Ethernet output for the connection to PCs

Overview

Features

Specifications

Technical Specifications

Flow Rate	3000 NmL/min ± 10% a 2000 m slm
Technologies Employed	PSA CLAIND + catalytic reactor Pl/Pd
Output Pressure	0 – 6 bar/0 – 87 psi ± 3%
Purity	HCT < 0,1 ppm
Moisture	< -50 °C dew-point ATP ± 2°C ATP
Air Input Characteristics	Particulate ≤ 0,01 mm Oil Vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP Min pressure: 8 bar/115 psi Air flow rate: 8 Nl/min
Electrical Supply	115 Vac ±10% 60 Hz 250W 230 Vac ±10% 50 Hz 250 W
Index Of Protection	IP20
Noise	< 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle
Operating Temperature	5℃ fino 35℃ (41°F fino 95°F)
Environmental Humidity	max 90% without condensation
Max Altitude	2000 m slm
Dimensions	Height : 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8”
Weight	G28 kg/62 lbs
Pneumatic Connections	Compressed air inlet: G 1/8” female Purified air output: G 1/8” female
