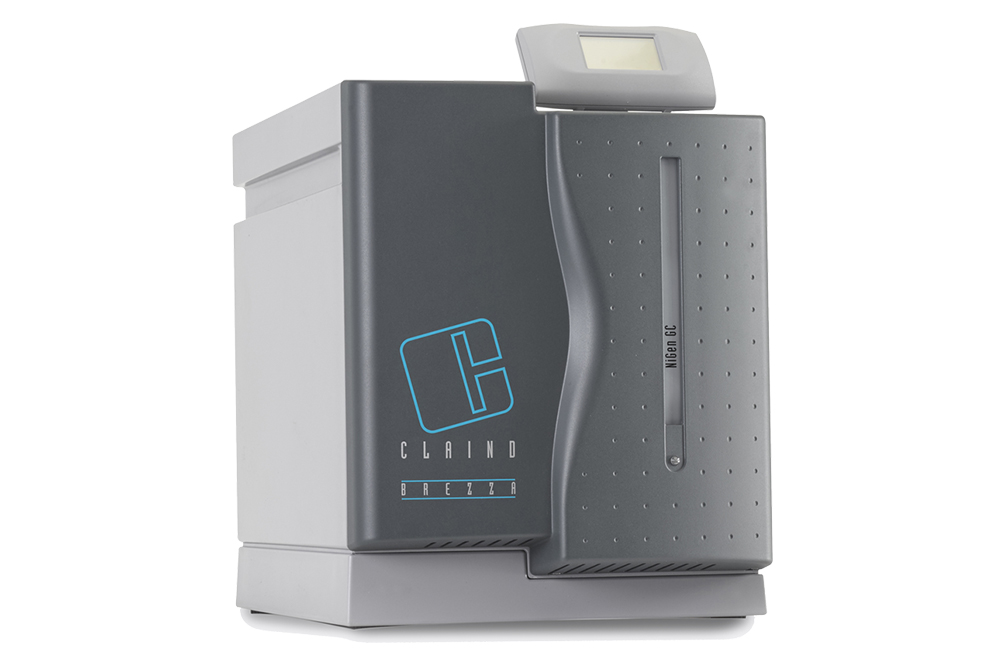

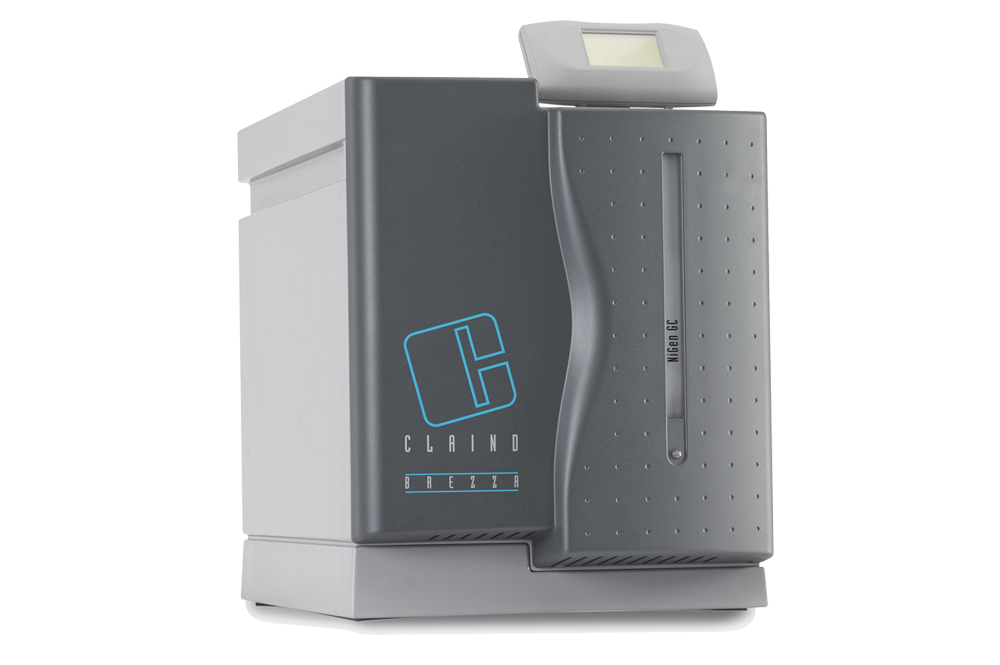

Claind – Nitrogen Generator – NiGen
- High purity nitrogen guaranteed by the PSA technology CLAIND “Fast Purity” patent that allows the delivery of high purity nitrogen in a very short time
- UHP PSA technology available in a standard version and the HC version which ensures 100% removal of hydrocarbons (HCT< 0,1 ppm for applications with high-sensivity detectors)
- Parallel connection up to 4 stacked generators with tower configuration
- Modular configuration
- Facility to serve up to 12 FIDs/NPDs with makeup gas or up to 7 ECDs oppure 5 S/S
- Facility for integration with a Brezza series dedicated air compressor (AirComp)
- CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), allows the monitoring of operational status and menus with report alarms and functioning parameters
คำอธิบาย
Available Models
Technical Specifications
| Flow rate | 500 Nml/min ± 10% a 2000 m asl |
| Technology | PSA CLAIND |
|---|---|
| Output pressure | 0 – 6 bar/0 – 87 psi ± 3% |
| Purity | > 99,9995 % |
| Moisture | < -50 °C dew-point ATP ± 2°C ATP |
| Air input characteristics | Particulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP min pressure: 8 bar Air flow rate: 6 Nl/min |
| Electrical supply x nigen gc | 115/230 Vac ±10% 60-50 Hz 50 w |
| Electrical supply x nigen gc hc | 115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W |
| Index of protection | IP20 |
| Noise | < 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle |
| Operating temperature | 5°C – 40°C/40°F – 100°F |
| Environmental humidity | max 90% without condensation |
| Max altitude | 2000 m asl |
| Dimensions | Height: 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8” |
| Weight | GC version: 28 kg/62 lbs GC HC version: 32 kg/70.5 lbs |
| Pneumatic connections | Compressed air inlet: G 1/8” female Nitrogen outlet: G 1/8” female |
Key Features
- High purity nitrogen guaranteed by the PSA technology
- CLAIND “Fast Purity” patent that allows the delivery of high purity nitrogen in a very short time
- UHP PSA technology available in a standard version and the HC version which ensures 100% removal of hydrocarbons (HCT< 0,1 ppm for applications with high-sensivity detectors)
- Parallel connection up to 4 stacked generators with tower configuration
- Modular configuration
- Facility to serve up to 12 FIDs/NPDs with makeup gas or up to 7 ECDs oppure 5 S/S
- Facility for integration with a Brezza series dedicated air compressor (AirComp)
- CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), allows the monitoring of operational status and menus with report alarms and functioning parameters
Technical Specifications
| Flow rate | 500 Nml/min ± 10% a 2000 m asl |
| Technology | PSA CLAIND |
|---|---|
| Output pressure | 0 – 6 bar/0 – 87 psi ± 3% |
| Purity | > 99,9995 % |
| Moisture | < -50 °C dew-point ATP ± 2°C ATP |
| Air input characteristics | Particulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP min pressure: 8 bar Air flow rate: 6 Nl/min |
| Electrical supply x nigen gc | 115/230 Vac ±10% 60-50 Hz 50 w |
| Electrical supply x nigen gc hc | 115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W |
| Index of protection | IP20 |
| Noise | < 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle |
| Operating temperature | 5°C – 40°C/40°F – 100°F |
| Environmental humidity | max 90% without condensation |
| Max altitude | 2000 m asl |
| Dimensions | Height: 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8” |
| Weight | GC version: 28 kg/62 lbs GC HC version: 32 kg/70.5 lbs |
| Pneumatic connections | Compressed air inlet: G 1/8” female Nitrogen outlet: G 1/8” female |
Key Features
- High purity nitrogen guaranteed by the PSA technology
- CLAIND “Fast Purity” patent that allows the delivery of high purity nitrogen in a very short time
- UHP PSA technology available in a standard version and the HC version which ensures 100% removal of hydrocarbons (HCT< 0,1 ppm for applications with high-sensivity detectors)
- Parallel connection up to 4 stacked generators with tower configuration
- Modular configuration
- Facility to serve up to 12 FIDs/NPDs with makeup gas or up to 7 ECDs oppure 5 S/S
- Facility for integration with a Brezza series dedicated air compressor (AirComp)
- CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), allows the monitoring of operational status and menus with report alarms and functioning parameters

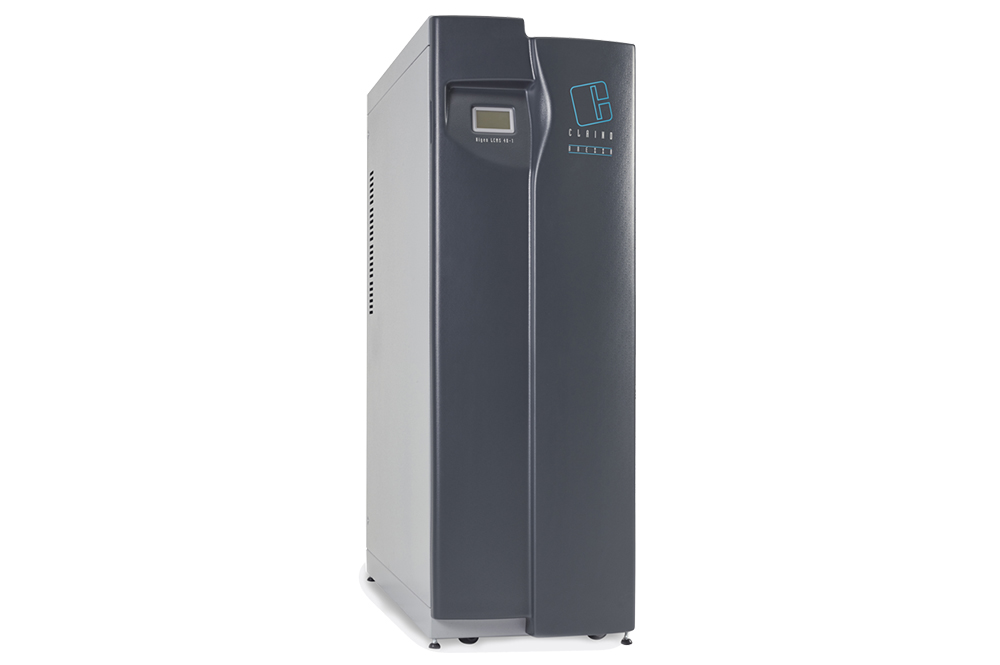

Technical Specifications
| Flow rate | 6 Nml/min ± 10% a 2000 m asl |
| Technologies employ | PSA CLAIND |
|---|---|
| Output pressure | 0 – 7 bar/0 – 100 psi ± 3% |
| Purity | > 99,9995 % |
| Oil free compressor | Included |
| Electrical supply | 115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W |
| Index of protection | IP20 |
| Noise | < 50 dBA during the stand by of the compressor |
| Operating temperature | 5°C fino 35°C (41°F fino 95°F) |
| Environmental humidity | max 90% without condensation |
| Dimensions | Height: 132 cm/52” Width: 44 cm/17.3” Depth: 110 cm/43.3” |
| Weight | 220 kg/489 lbs |
| Pneumatic connections | Compressed air inlet: G 1/4” female Nitrogen outlet: G 1/4” female |
Key Features
- PSA molecular sieve technology dedicated to offer UHP Nitrogen for GC and ICP
- CLAIND “Fast Purity“ patent that allows the delivery of high-purity nitrogen within 30 minutes
- Built-in compressor oil free including 2 x 50 l. tanks for Compressed Air and Nitrogen
- Highly reliable Air compressor with maintenance required only after 14,000 hours of work
- 2 gas outlets : available: UHP Nitrogen and Oil Free Air
- CPU with Touch Screen Display allows the monitoring of operational status and menus with report alarms and functioning parameters.
- Equipped with full turn wheels for easy moving
