Eltra – Carbon/Hydrogen/Sulfur Analyzer – CHS-580

Application Examples

Coal, coke, oil, plant materials, rubber, soot, tobacco, waste


Function Principle

Operation CHS-580

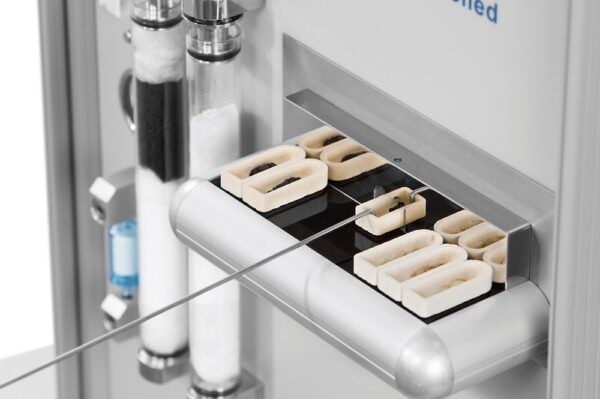

After weighing the sample in a ceramic boat, the weight is transferred from the interfaced balance to the PC. If required, sample weights can also be entered manually. Then the ceramic boat is introduced into the furnace for combustion. The average analysis time is 60 to 180 seconds. The detector signals and instrument parameters are displayed during analysis. Evaluation of the signals and display of the results are done automatically; the data can be transferred to a laboratory information management system (LIMS). The CS-580 requires minimum maintenance. The particle filters and chemicals which need to be maintained are easily accessible.


Measuring Principle CHS-580

In the CHS-580 the sample is burnt in an oxygen atmosphere at temperatures up to 1,550°C. The furnace temperature can be freely selected in steps of 1°C. The combustion gasses (CO₂, H₂O, SO₂) coming from the furnace and first pass through a dust filter and then into the heated H₂O infrared cell. After the water vapor is chemically absorbed, the dried CO₂ and SO₂ gas is detected in the additional infrared cells. Depending on the configuration, it is possible to combine up to three infrared cells with different sensitivities.

Technical Specifications

Measured elements	carbon, hydrogen, sulfur
Samples	organic
Furnace alignment	horizontal
Sample carrier	ceramic boats
Field of application	agriculture, biology, chemistry / plastics, coal / power plant, construction materials, environment / recycling, medicine / pharmaceuticals
Furnace	resistance furnace (ceramic tube), adjustable up to 1550 °C (steps of 1 °C)
Detection method	solid state infrared absorption
Number of IR cells	1 – 3
Material of IR path	gold
Typical analysis time	60 – 180 s
Chemicals required	magnesium perchlorate, sodium hydroxide
Gas required	oxygen 99.5 % pure (2 – 4 bar / 30 – 60 psi)
Power requirements	230 V, 50/60 Hz
max. heat up current 2000 W	max. heat up current 2000 W
Dimensions (W x H x D)	55 x 80 x 60 cm
Weight	~ 70 kg
Required equipment	balance (resolution 0.0001g), monitor, PC
Optional accessories	TIC module, voltage stabilizer 5 KVA

CHS-580

• Simultaneous carbon, sulfur and hydrogen determination with minimal sample preparation
• Wide range of organic materials can be analyzed
• Rapid, precise, accurate and reliable element determination
• Resistance furnace can be set up to 1550 °C in steps of 1 °C
• Customized infrared cells provide wide, dynamic measuring range
• Due to gold IR path, increased cell live time for analysis of halogen or acid containig samples
• Powerful software (multilingual, customized display, export of results)
• Single and multipoint calibration
• Low maintenance
• Robust design allows usage in production control and laboratory
