TA Instruments – Thermal Analysis – Dynamic Mechanical Analyzer
Dynamic Mechanical Analysis measures the mechanical properties of materials as a function of time, temperature, and frequency. In addition to quantifying viscoelastic properties of materials, DMA can also quantify finished component and product characteristics, reflecting the important contribution that processing has on end-use product performance. DMA is commonly used to measure glass transition temperatures (Tg) and secondary transitions, orientation caused by processing, cold crystallization, cure optimization, filler effects in composites, and much more. DMA provides an accurate measure of material modulus and product stiffness plus other important mechanical properties such as damping, creep, and stress relaxation.
Technical Specifications
| DMA 850 | RSA-G2 | |
| Maximum Force | 18 N | 35 N |
| Minimum Force | 0.0001 N | 0.0005 N |
| Force Resolution | 0.00001 N | 0.00001 N |
| Frequency Range | 0.001 to 200 Hz | 2 x 10-5 to 100 Hz |
| Dynamic Deformation Range | ±0.005 to 10,000 μm | ±0.00005 to ±1.5 mm |
| Modulus Range | 103 to 3 x 1012 Pa | 103 to 3 x 1012 Pa |
| Modulus Precision | ± 1% | ± 1% |
| Tan δ Sensitivity | 0.0001 | 0.0001 |
| Tan δ Resolution | 0.00001 | 0.00001 |
| DMA 3200 | |
| Maximum Force | 500 N |
| Dynamic Displacement Range | ±0.0005 to ± 6.5 mm |
| Displacement Resolution | 1 Nanomete |
| Maximum Acceleration | 80 G |
Available Models
TA Instruments invites you to experience the ultimate in Dynamic Mechanical Analyzers, the Discovery DMA 850. Building on superior technologies of the world’s best-selling DMA, improvements in every aspect of DMA performance deliver the most accurate and reproducible measurement of mechanical properties over a wide temperature range. It’s never been easier to get great DMA data!
Key Features
- Non-contact, low-mass motor delivers continuous forces from 0.1 mN to 18 N to measure everything from soft to stiff materials
- Frictionless, low-compliance air bearing design ensures superior force sensitivity and accuracy
- Unique optical encoder technology provides 0.1 nm resolution over a 25 mm continuous range of travel for ultimate testing versatility
- New DirectStrain™ and Intelligent Autoranging controls allow you to measure the widest range of sample stiffness and frequencies for the best data, the first time, every time
- Choice of two dedicated environmental systems for precise, responsive control under the most relevant test conditions
- Exclusive Air Chiller Systems provide effective controlled cooling to -100°C without the cost or hassle of liquid nitrogen
- Purpose-built, high-stiffness, low mass clamps are easy-to-use and ensure data repeatability
- New innovative “app-style” touch screen puts instrument functionality simply One-Touch-Away™, enhancing usability and making it easier than ever to get great data
- Powerful TRIOS software provides simple set-up and execution through separate test interfaces designed for novice or expert users.
- Commitment to quality backed by the industry’s ONLY five-year furnace warranty for peace of mind
The DMA 3200 features patented ElectroForce linear motor technology enabling a single instrument to deliver unequalled performance and data accuracy. This unique motor technology combines powerful rare-earth magnets with a frictionless flexural suspension for the most precise force and displacement control over a wide range of frequencies and amplitudes. The DMA 3200 motor delivers a force output of up to 500 N and controlled displacements ranging from 1 micron to 13 mm. Testing can be conducted in both static and dynamic modes.
Key Features
- Patented, linear motor and high-resolution displacement sensor provides unmatched control over the widest ranges of force, displacement, and frequency, for superior data accuracy
- Ultra-durable, frictionless motor, backed by industry’s only ten-year warranty, provides maintenance- and worry-free operation
- High force of 500 N enables testing of larger samples or final parts under real-world conditions, by achieving higher loading levels in both DMA and fatigue analysis
- Forced Convection Oven (FCO) provides superior control and responsiveness over a temperature range of -150°C to 600°C for the highest degree of accuracy and flexibility in experiment thermal profiles
- Large Sample Oven (LSO), with a temperature range of -150°C to 315°C, offers spacious interior dimensions to accommodate testing of large samples or components
- Air Chiller Systems (ACS) offer unique gas flow cooling for sub-ambient testing without the use of liquid nitrogen, eliminating potential laboratory hazards while providing an incredible return on investment
- Broad range of fixtures accommodate a wide range of sample sizes and geometries adding to testing versatility
- Extremely rigid test frame and air bearings ensure the most accurate results on samples of very high stiffness
- Multi-color status lights provide clear and visible indication of instrument and test status
- WinTest® and TRIOS Software packages provide powerful and easy-to-use instrument control and data analysis for the ultimate flexibility in experimental design

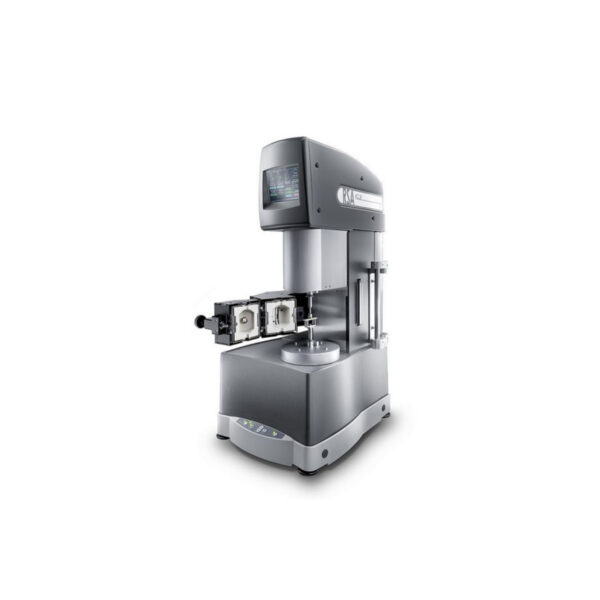

The new RSA-G2 is the most advanced platform for mechanical analysis of solids.
The separate motor and transducer technology of the RSA-G2 insures the purest mechanical data through independent control of deformation and measurement of stress. It is capable of performing the most accurate DMA measurements as well as many additional experiments including creep and recovery, stress relaxation, stress ramps, strain rate ramps, iso-strain, iso-force, fatigue, multi-wave, arbitrary waveform, and dielectric thermal analysis.
With such a broad range of solid analysis techniques, the RSA-G2 is uniquely positioned to address the widest range of applications from the R&D bench to the quality control lab. This new high-performance instrument represents the fourth generation of dual head mechanical analyzers, featuring a new force convection oven for precise and accurate temperature control, extensive array of geometries to accommodate the widest range of sample shapes and stiffness, and immersion testing capability.
Key Features
- มอเตอร์แบบ Non-contact, Low Mass Motor สามารถให้แรงต่อเนื่อง จาก 0.1 mN ถึง 18 N
- Air Bearing แบบไม่มีแรงเสียดทาน และควบคุมแรงอย่างความละเอียด และมีความถูกต้องสูง
- มีเทคโนโลยี Optical Encoder สามารถวัดได้ละเอียดถึง 0.1 nm และสามารถเลื่อนได้ระยะสูงสุด 25 mm
- เป็นระบบ DirectStrain™ และระบบควบคุมแบบอัจฉริยะ Autoranging จึงรองรับความแข็งของตัวอย่างที่หลากหลาย และความถี่ได้ในช่วงกว้าง
- มีระบบ 2 แบบให้เลือกใช้คือเต้าความร้อน และเตาทำความชื้น
- มีอุปกรณ์ทำความเย็นอัตโนมัติ สามารถทำความเย็นได้ต่ำสุด -100 °C โดยไม่ต้องใช้ไนโตรเจนเหลว
- มีหัววัดที่ตัวอย่างที่แข็งแรง และใช้งานง่าย
- ประกันคุณภาพเตาให้ความร้อน 5 ปีจาก TA Instruments
- ซอฟต์แวร์ใช้งานง่าย สามารถวิเคราะห์ผลได้ขณะทดสอบ และสามารถเปลี่ยนแปลงขั้นตอนการทดสอบได้ในขณะทดสอบ
DMA 850 – The Most Powerful Dynamic Mechanical Analysis
ElectroForce DMA 3200 from TA Instruments
